    IMD-M09T

    apply to HDR

    环亚币游国际(中国优质)股份有限公司/>

    FEATURES

    ①Integrated Matrix Device (IMD) solution, smaller pixel pitch, higher definition image display.

    ②Integrated Matrix Device (IMD) solution, smaller pins, solve the problems of soldering strength and crash.

    ③High precision cutting technology, solve the problems of warping and mixed light in display, achieve to the seamless combination

    ④Gold wire bonding, better reliability.

    ⑤Reduce the effect of moore grain, no modular color difference in whole screen, 100% tested and binning, better color consistency.

    PRODUCT PARAMETERS

    Product Name

    Color IF(mA)
    TEST
    λd(nm)
    Typ
    Iv(mcd)
    Typ
    Vf(V)
    Typ
    View angle
    (deg.)

    IMD-M09T
    1.6×1.6×0.67

    5 620 15 2.0 120
    2 535 25 2.6 120
    2 464 3.5 2.7 120

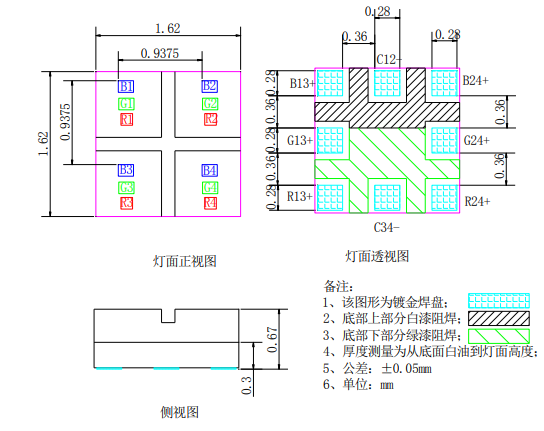

    DIMENSIONS/UNIT(mm)
